Visualisation cell

To support researchers in understanding the kinetics and mechanisms of their reactions, as well as optimizing process parameters, Top Industrie has developed a wide range of customized visualization cells. These cells operate under high pressure and temperature conditions, allowing for in-situ observation, analysis, and study of various reactions.

key features

feature

details

study cells without visualization

Equipped with internal probes suitable for different measuring techniques such as FTIR, Raman spectroscopy, and others.

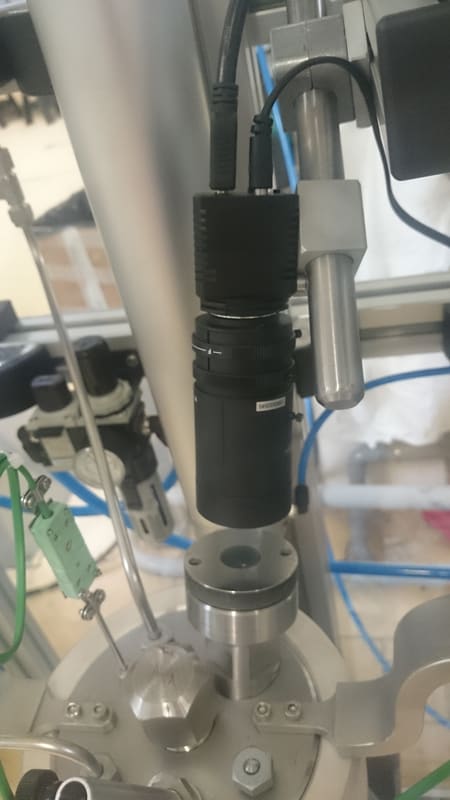

study cell with windows

Fitted with windows made from specific materials for different wavelengths (please contact us for details), compatible with Raman spectroscopy, FTIR, fluorescence, and more.

process integration

The cells can be integrated with additional process requirements such as heating, cooling, stirring, and sampling for analysis.

materials

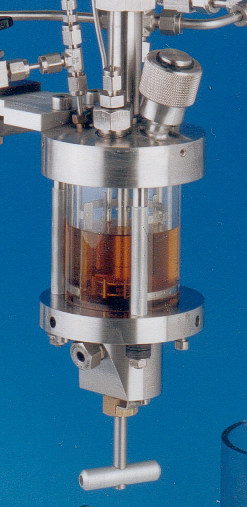

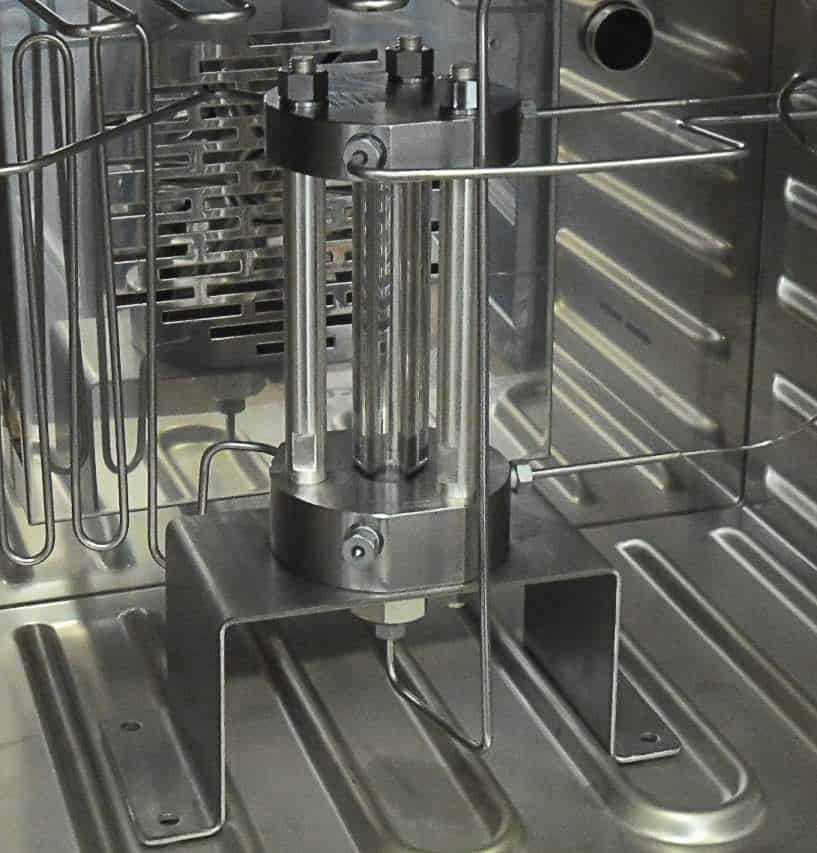

Borosilicate or sapphire tubular cells allow complete visualization during phase equilibrium studies.

Applications

  • Phase Equilibrium Studies:
    Visualize and analyze phase changes under controlled pressure and temperature conditions.
  • Kinetics and Reaction Mechanism:
    Provides real-time insight into reaction behavior, helping researchers optimize reaction parameters.
  • In-Situ Analysis:
    Integration of advanced measurement tools such as spectroscopy and fluorescence, allowing for detailed observation and data collection during the reaction.
  • Phase Balance Equipment:
    Complete solutions for Liquid-Liquid, Vapor-Liquid (VLE & VLLE), Solid-Liquid (SLE) equilibrium studies, gas solubility, and asphaltene studies.
